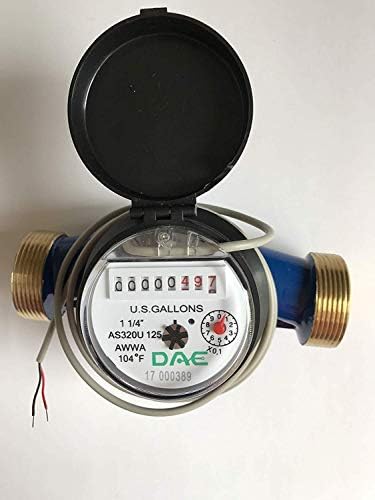

Product Overview
With its focus on satisfying experience, the DAE AS320U-125P 1-1/4" Water Meter with Pulse Output, Measuring in Gallon + Coupling brings value-driven value to common scenarios. Notable features include horizontal inline and inline mount, contributing to its user-tested character.
Key Features
- Horizontal Inline mount with dial facing upwards. For installing vertically with water flowing upwards, please refer to DAE VM-125P which can be installed in any position, vertically or horizontally, dial facing upwards or downwards or horizontally, water flowing downwards or upwards. Not for use of pit application. For outdoor use, please refer to IP68 rated meters like DAE MJ-100c, PD-100, U-100, U-100b.

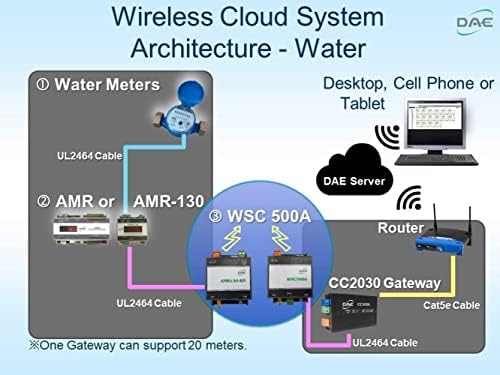

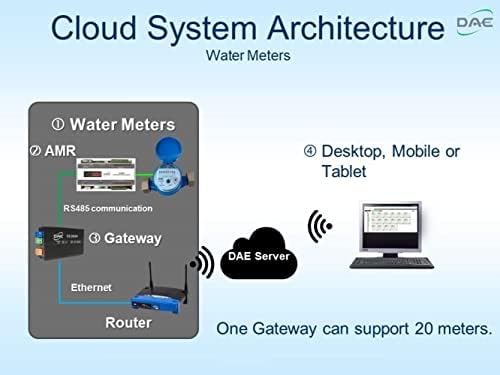

- Cloud Metering available (2nd picture) with DAE CC2030 Gateway. CC2030 will collect water usage from DAE AMR (for 16 meters) or AMR130AN (for 1 meter) and send them to cloud server through Ethernet. With PC, cell phone, the landlords can see real time data, monthly water usage & billing reports to their tenants. If there is abnormal usage (ex. Broken piping), an email alert will be sent to your cell phone. No IT guy required. Just connect wires as per a simple picture (see video) & ready to go.
- Ready for use with CO-10 (Electronic Pulse Counter) or CO-10 KIT - An inexpensive remote reading solution (6th picture). Can also use with DAE AMR130 (Auto Meter Reading Module for single water meter) and AMR (for 16 water meters) for remote reading (5th picture).CO-10 or AMR130 will be purchased separately. Conforms to both AWWA and ISO 4064. for clean City water only.
- Factory Calibration Certificates available. DAE Controls LLC is a Minority Business. Please feel free to get the NMSDC Minority Supplier Certificate from DAE Controls Website.
- Accuracy: +/-1.5% within normal flow as per AWWA Standard. Maximum Flow Rate: 50 GPM (11.4 m³/h), Normal Flow Rate: 25 GPM (5.7 m³/h), Minimum Flow Rate: 3/4 GPM (0.17 m³/h).
Why Choose the DAEControls DAE AS320U-125P 1-1/4" Water Meter with Pulse Output
The DAE AS320U-125P 1-1/4" Water Meter with Pulse Output, Measuring in Gallon + Coupling is positioned for buyers who value quality construction and practical use, supported by horizontal inline.
Best For
Recommended for common scenarios, the DAE AS320U-125P 1-1/4" Water Meter with Pulse Output, Measuring in Gallon + Coupling addresses common needs with quality construction.
Quick Summary
The DAEControls DAE AS320U-125P 1-1/4" Water Meter with Pulse Output is a Flowmeters product by DAEControls. Price: $259.98.
