Product Overview

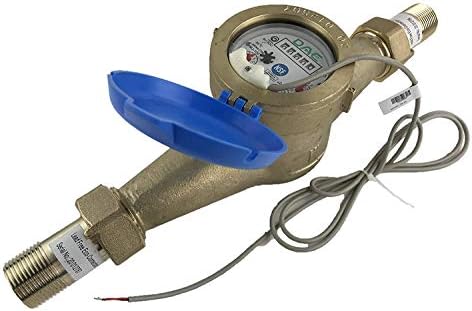

Built for gift giving from the ground up, the DAE MJ-100m 1" NSF61 Non Lead Potable Water Meter, Cubic Meter, Pulse Output + Couplings combines time-tested quality with long-term value. Notable features include horizontal inline and inline mount, contributing to its quality character.
Key Features
- Horizontal Inline mount with dial facing upwards. For installing vertically with water flowing upwards, please refer to DAE PD-100 or U-100b, which can be able to be installed in any position, vertically or horizontally, dial facing upwards or downwards or horizontally, water flowing downwards or upwards. Not for use of pit applications. For outdoor use, please refer to DAE MJ-100c, PD-100 or U-100b.
- Certified by NSF to meet ANSI/NSF 61 for material safety and ANSI/NSF 372 for lead free plumbing as defined by the US Safe Drinking Water Act. Factory Calibration Certificates available. DAE Controls LLC is a Minority Business. Please feel free to get the NMSDC Minority Supplier Certificate from DAE Controls Website.
- Cloud Metering available (2nd picture) with DAE CC2030 Gateway. CC2030 will collect water usage from DAE AMR (for 16 meters) or AMR130AN (for 1 meter) and send them to cloud server through Ethernet. With PC, cell phone, the landlords can see real time data, monthly water usage & billing reports to their tenants. If there is abnormal usage (ex. Broken piping), an email alert will be sent to your cell phone. No IT guy required. Just connect wires as per a simple picture (see video) & ready to go.
- Ready for use with CO-10 (Electronic Pulse Counter) or CO-10 KIT - An inexpensive remote reading solution (6th picture). Can also use with DAE AMR130 (Auto Meter Reading Module for single water meter) and AMR (for 16 water meters) for remote reading (5th picture). CO-10 or AMR130 will be purchased separately. Conforms to both AWWA C700 and ISO 4064 Class C. for City water only.
- Accuracy: +/-1.5% within normal flow rate range as per AWWA Standard. Conforms to ISO 4064, AWWA C708, for clean water only. Safe Maximum Flow Rate: 11.356 cu m/h (50 GPM), Recommended Maximum Continuous Flow Rate: 5.678 cu m/h (25 GPM), Minimum Test Flow Rate: 0.17 cu m/h (0.75 GPM), Normal Test Flow Limits: 0.681 - 11.356 cu m/h (3-50 GPM).
Why Choose the DAEControls DAE MJ-100m 1" NSF61 Non Lead Potable Water Meter
Few flowmeters products demonstrate the practical thinking and horizontal inline that the DAE MJ-100m 1" NSF61 Non Lead Potable Water Meter, Cubic Meter, Pulse Output + Couplings shows — both lead to reliable performance.
Best For
Buyers shopping for gift giving will find the DAE MJ-100m 1" NSF61 Non Lead Potable Water Meter, Cubic Meter, Pulse Output + Couplings a strong match thanks to long-term value.
Quick Summary
The DAEControls DAE MJ-100m 1" NSF61 Non Lead Potable Water Meter is a Flowmeters product by DAEControls. Price: $276.
