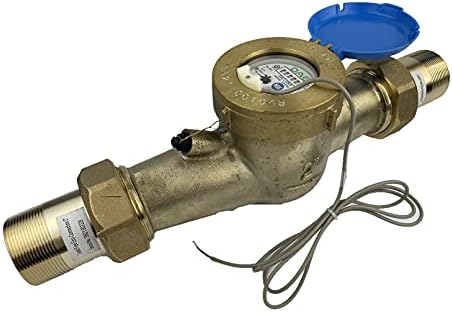

DAE MJ-200n 2" NTEP NSF61 Non Lead Potable Water Meter, Pulse Output + Couplings

Product Overview

A versatile product through and through, the DAE MJ-200n 2" NTEP NSF61 Non Lead Potable Water Meter, Pulse Output + Couplings, Gallons matches everyday needs needs with thoughtful design. measuring 11.3"L x 4.8"W x 5.6"H, available in Brass. Notable features include horizontal inline and inline mount, contributing to its well-made character.

Key Features

• Horizontal Inline mount with dial facing upwards. For installing vertically with water flowing upwards, please refer to DAE PD-200 (B08D918WZP), which can be able to be installed in any position, vertically or horizontally, dial facing upwards or downwards or horizontally, water flowing downwards or upwards. Not for use of pit application. For outdoor use, please refer to DAE MJ-200c, PD-200.
• National NTEP approval in accuracy, and repeatability as tested by Utah Water Research Lab. It applies to all the states including California who accepts both NTEP or CTEP. Certified by NSF to meet ANSI/NSF 61 for material safety and ANSI/NSF 372 for lead free plumbing as defined by the US Safe Drinking Water Act. Factory Calibration Certificates available. DAE Controls LLC is a Minority Business. Please feel free to get the NMSDC Minority Supplier Certificate from DAE Controls Website.

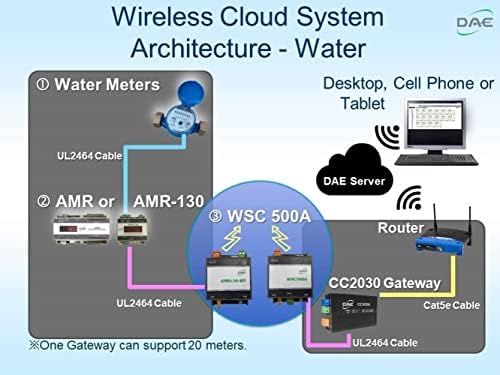

• Cloud Metering available (2nd picture) with DAE CC2030 Gateway. CC2030 will collect water usage from DAE AMR (for 16 meters) or AMR130AN (for 1 meter) and send them to cloud server through Ethernet. With PC, cell phone, the landlords can see real time data, monthly water usage & billing reports to their tenants. If there is abnormal usage (ex. Broken piping), an email alert will be sent to your cell phone. No IT guy required. Just connect wires as per a simple picture (see video) & ready to go.

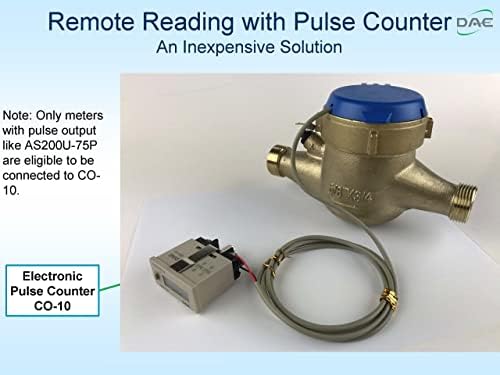

• Ready for use with CO-10 (Electronic Pulse Counter) or CO-10 KIT - An inexpensive remote reading solution (6th picture). Can also use with DAE AMR130 (Auto Meter Reading Module for single water meter) and AMR (for 16 water meters) for remote reading (5th picture). CO-10 or AMR130 will be purchased separately. Conforms to both AWWA C700 and ISO 4064 Class C. for City water only.
• Accuracy: +/-1.5% within normal flow rate range as per AWWA Standard. Conforms to AWWA C708, for clean water. Safe Maximum Flow Rate: 160 GPM, Recommended Maximum Continuous Flow Rate: 80 GPM, Minimum Test Flow Rate: 2 GPM Normal Test Flow Limits: 8-160 GPM.

Why Choose the DAEControls DAE MJ-200n 2" NTEP NSF61 Non Lead Potable Water Meter

For buyers prioritizing long-term value, the DAE MJ-200n 2" NTEP NSF61 Non Lead Potable Water Meter, Pulse Output + Couplings, Gallons offers user-tested construction paired with horizontal inline. Few flowmeters products combine these elements as effectively.

Best For

Buyers shopping for everyday needs will find the DAE MJ-200n 2" NTEP NSF61 Non Lead Potable Water Meter, Pulse Output + Couplings, Gallons a strong match thanks to thoughtful design.

Quick Summary

The DAEControls DAE MJ-200n 2" NTEP NSF61 Non Lead Potable Water Meter is a Flowmeters product by DAEControls. Color: Brass. Brand: DAE. Compatible Devices: PC, cell phone. Product Dimensions: 11.3"L x 4.8"W x 5.6"H. Voltage: 24 volts. Price: $798.
