Product Overview

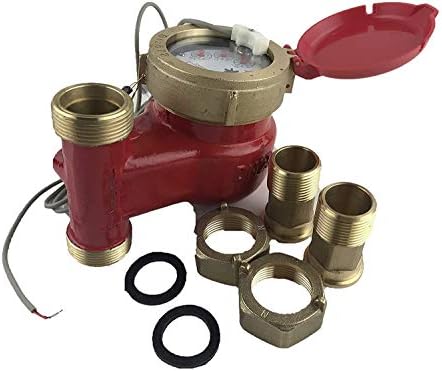

The DAE V-100RP 1” Vertical Hot Water Meter with Pulse Output, Measuring in Gallon + Couplings reflects reliable thinking, providing practical use suitable for household use. Notable features include mount vertically and vertically dial, contributing to its practical character.
Key Features
- Mount: vertically, dial facing upwards, water flowing upwards. For installing vertically with water flowing downwards, please refer to DAE U-100R which can be installed in any position, vertically or horizontally, water flowing downwards or upwards, dial facing upwards, downwards or side-way. Not for use of pit application. For outdoor use, please refer to IP68 rated meters like DAE U-100R.

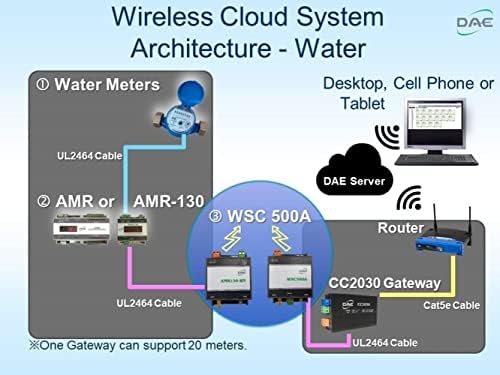

- Cloud Metering available (2nd picture) with DAE CC2030 Gateway. CC2030 will collect water usage from DAE AMR (for 16 meters) or AMR130AN (for 1 meter) and send them to cloud server through Ethernet. With PC, cell phone, the landlords can see real time data, monthly water usage & billing reports to their tenants. If there is abnormal usage (ex. Broken piping), an email alert will be sent to your cell phone. No IT guy required. Just connect wires as per a simple picture (see video) & ready to go.
- Ready for use with CO-10 (Electronic Pulse Counter) or CO-10 KIT - An inexpensive remote reading solution (6th picture). Can also use with DAE AMR130 (Auto Meter Reading Module for single water meter) and AMR (for 16 water meters) for remote reading (5th picture). CO-10 or AMR130 will be purchased separately. Conforms to both AWWA C700 and ISO 4064 Class C. for City water only.
- Factory Calibration Certificates available. DAE Controls LLC is a Minority Business. Please feel free to get the NMSDC Minority Supplier Certificate from DAE Controls Website.
- Accuracy: +/-1.5% within normal flow as per AWWA Standard. Conforms to both AWWA C708 and ISO 4064, for clean water only. Maximum Flow Rate: 50 GPM, Normal Flow Rate: 25 GPM, Minimum Flow Rate: 0.75 GPM.
Why Choose the DAEControls DAE V-100RP 1” Vertical Hot Water Meter with Pulse Output
Buyers gravitate toward the DAE V-100RP 1” Vertical Hot Water Meter with Pulse Output, Measuring in Gallon + Couplings for the practical reasons: versatile construction, mount vertically, and the everyday convenience that results.
Best For
The DAE V-100RP 1” Vertical Hot Water Meter with Pulse Output, Measuring in Gallon + Couplings pairs naturally with household use situations, offering practical use when it counts.
Quick Summary
The DAEControls DAE V-100RP 1” Vertical Hot Water Meter with Pulse Output is a Flowmeters product by DAEControls. Price: $293.98.
