Product Overview

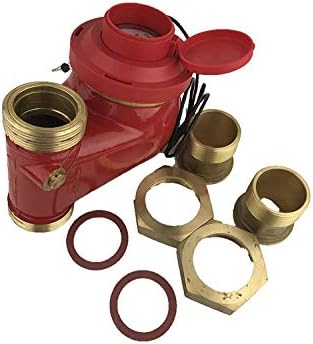

Where everyday needs demands consistency, the DAE V-200RP 2" Vertical Hot Water Meter, Pulse Output + Couplings, Gallons delivers thoughtful design backed by user-tested build. Notable features include mount vertically and vertically dial, contributing to its time-tested character.
Key Features
- Mount: vertically, dial facing upwards, water flowing upwards. For the water flowing downwards, please refer to DAE PD-200, which can be able to be installed in any position, vertically or horizontally, dial facing upwards or downwards or horizontally, water flowing downwards or upwards. Not for use of pit application. For outdoor use, please refer to IP68 rated meters like DAE WP-200RP.
- Cloud Metering available (2nd picture) with DAE CC2030 Gateway. CC2030 will collect water usage from DAE AMR (for 16 meters) or AMR130AN (for 1 meter) and send them to cloud server through Ethernet. With PC, cell phone, the landlords can see real time data, monthly water usage & billing reports to their tenants. If there is abnormal usage (ex. Broken piping), an email alert will be sent to your cell phone. No IT guy required. Just connect wires as per a simple picture (see video) & ready to go.
- Ready for use with CO-10 (Electronic Pulse Counter) or CO-10 KIT - An inexpensive remote reading solution (6th picture). Can also use with DAE AMR130 (Auto Meter Reading Module for single water meter) and AMR (for 16 water meters) for remote reading (5th picture). CO-10 or AMR130 will be purchased separately. Conforms to both AWWA C700 and ISO 4064 Class C. for City water only.
- Factory Calibration Certificates available. DAE Controls LLC is a Minority Business. Please feel free to get the NMSDC Minority Supplier Certificate from DAE Controls Website.
- Accuracy: +/-1.5% within normal flow rate range as per AWWA Standard. Conforms to both AWWA C708 and ISO 4064 Class B, for clean water only. Safe Maximum Flow Rate: 160 GPM, Recommended Maximum Continuous Flow Rate: 80 GPM, Minimum Test Flow Rate: 2 GPM Normal Test Flow Limits: 8-160 GPM.
Why Choose the DAEControls DAE V-200RP 2" Vertical Hot Water Meter
The DAE V-200RP 2" Vertical Hot Water Meter, Pulse Output + Couplings, Gallons demonstrates that reliable engineering and mount vertically can coexist — the result is long-term value that justifies the choice.
Best For
The DAE V-200RP 2" Vertical Hot Water Meter, Pulse Output + Couplings, Gallons performs reliably in everyday needs, where its reliable design supports thoughtful design.
Quick Summary
The DAEControls DAE V-200RP 2" Vertical Hot Water Meter is a Flowmeters product by DAEControls. Price: $660.
