Product Overview

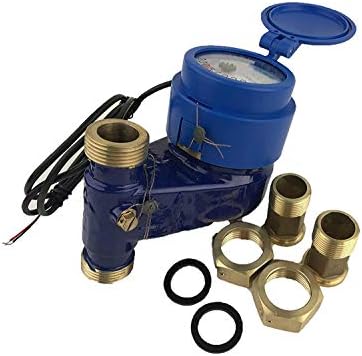

The DAE V-75Pn Vertical Water Meter, Rotating Register, Pulse Output, 3/4” NPT Couplings, Gallons bridges time-tested design and long-term value, well-suited for gift giving. Notable features include mount vertically and vertically dial, contributing to its quality character.
Key Features
- Mount: vertically, dial facing upward, water flowing upwards. For installing vertically with water flowing downwards, please refer to DAE VM-75P or DAE PD-75 which can be installed in any position, vertically or horizontally, water flowing downwards or upwards, dial facing upwards, downwards or side-way. Not for use of pit application. For outdoor use, please refer to IP68 rated meters like DAE PD-75, PD-75y, U-75, U-75b.
- Cloud Metering available (2nd picture) with DAE CC2030 Gateway. CC2030 will collect water usage from DAE AMR (for 16 meters) or AMR130AN (for 1 meter) and send them to cloud server through Ethernet. With PC, cell phone, the landlords can see real time data, monthly water usage & billing reports to their tenants. If there is abnormal usage (ex. Broken piping), an email alert will be sent to your cell phone. No IT guy required. Just connect wires as per a simple picture (see video) & ready to go.
- Ready for use with CO-10 (Electronic Pulse Counter) or CO-10 KIT - An inexpensive remote reading solution (6th picture). Can also use with DAE AMR130 (Auto Meter Reading Module for single water meter) and AMR (for 16 water meters) for remote reading (5th picture). CO-10 or AMR130 will be purchased separately. Conforms to both AWWA C708 and ISO 4064. for clean City water only.
- Factory Calibration Certificates available. DAE Controls LLC is a Minority Business. Please feel free to get the NMSDC Minority Supplier Certificate from DAE Controls Website.
- Accuracy: +/-1.5% within normal flow as per AWWA Standard. Maximum Flow Rate: 20 GPM, Normal Flow Rate: 10 GPM, Minimum Flow Rate: 1/4 GPM. The meter may be damaged if your Continuous flow is more than 10 GPM. DAE V-75Pn 5/8"*3/4" meter is not a meter with a 5/8" inlet and a 3/4" outlet. It is with 3/4" NPT couplings for both 3/4" inlet and 3/4" outlet.
Why Choose the DAEControls DAE V-75Pn Vertical Water Meter
The DAE V-75Pn Vertical Water Meter, Rotating Register, Pulse Output, 3/4” NPT Couplings, Gallons stands out for its practical build and reliable performance, complemented by mount vertically. Together these qualities make it a dependable choice in the flowmeters category.
Best For
For users centered on gift giving, the DAE V-75Pn Vertical Water Meter, Rotating Register, Pulse Output, 3/4” NPT Couplings, Gallons delivers long-term value through practical construction.
Quick Summary
The DAEControls DAE V-75Pn Vertical Water Meter is a Flowmeters product by DAEControls. Price: $155.98.
